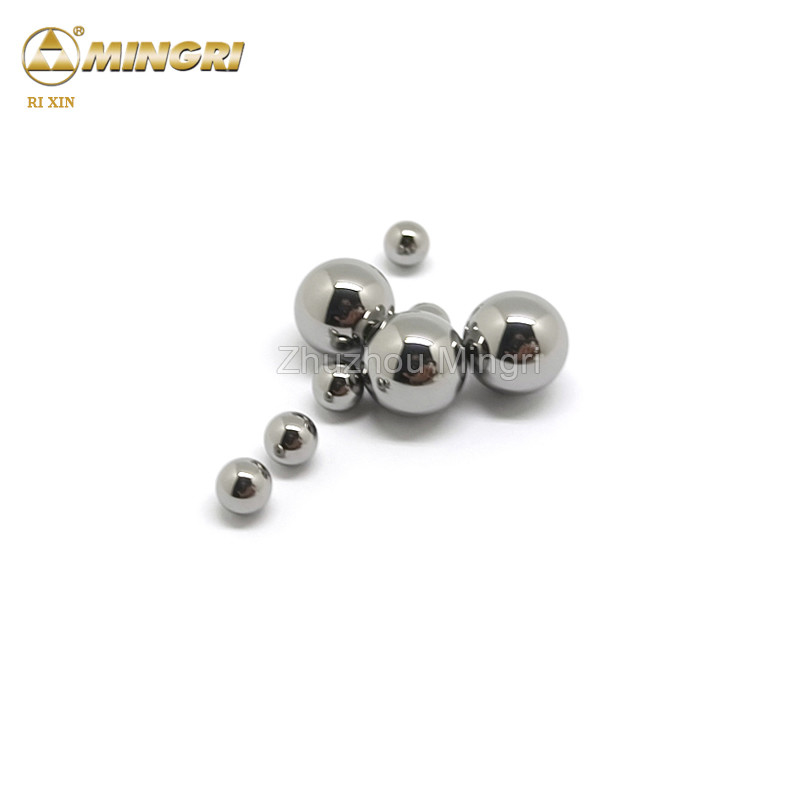

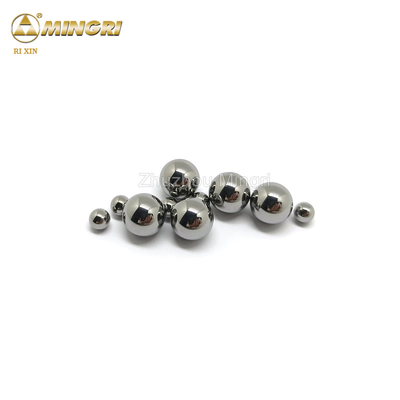

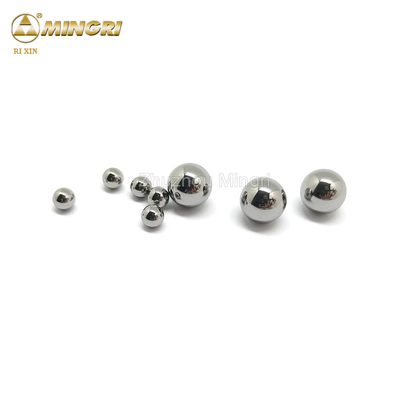

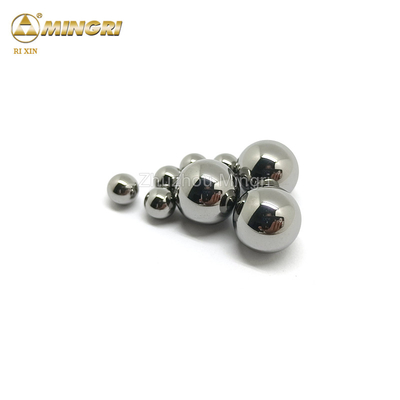

High Precision G10 G25 Grinding Ball 20mm Tungsten Carbide Ball for Ball Mill
Product Details:
| Place of Origin: | China |
| Brand Name: | Rixin |
| Certification: | CE ROHS UL ISO |
| Model Number: | YG8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1KG |
|---|---|
| Packaging Details: | Cartons |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50+tons+per month |
|
Detail Information |
|||
| Keyword: | Tungsten Carbide Ball | Material: | 100% Raw Material |
|---|---|---|---|
| Usage: | Used For Mill Machine | Component: | WC+CO |
| Tolerance: | As Per Your Requirment | Product Name: | Tungsten Carbide Ball |
| Surface: | Blanks Or Polished | Size: | 3mm, 6mm, 10mm Ect |
| Grade: | YG6,YG8 | HS Code: | 820900 |
| High Light: | 20mm Grinding Ball,G25 Tungsten Carbide Grinding Ball,20mm Tungsten Carbide Grinding Ball |
||
Product Description
High Precision G10 G25 Grinding Ball 20mm Tungsten Carbide Ball for Ball Mill
Specification of tungsten carbide ball
Tungsten carbide balls alternate name Cemented carbide ball, refers to the ball and ball made of tungsten carbide. Tungsten carbide ball has high hardness, wear resistance, corrosion resistance, bending resistance and poor service environment.
The tungsten carbide grinding ball is a kind of powder metallurgy product which is mainly composed of carbide (WC, TIC) micron powder of high hardness refractory metal and sintered in vacuum furnace or hydrogen reduction furnace with cobalt (CO) or nickel (Ni) as binder.
The cemented carbide grinding ball material includes YG6, YG6X, YG8, yg8x, yn6, yn9, etc.
| Product name | tungsten carbide bearing ball / carbide valves balls |
| Material | YG6 |
| Size range | 0.4-50.8mm |
| Hardness | HRA91 |
| Surface | Polished / blanks |
| Packing Condition | Dry / Oil |
| Composition | WC94%, CO6% |
| Density | 14.6-15.0g/cm³ |
| Characteristic | (a)Very high hardness |
| (b)Good abrasion resistance | |
| (c)High vibration resistance |
Sizes of tungsten carbide ball
Product DIA. specifications:
| 2mm | 2.381mm (3/32") |
3mm | 3.175mm (1/8") |
4mm | 4mm |
| 6mm | 6.35mm (1/4") |
8mm | 8.5mm | 12mm | 11.1125mm (7/16") |
| 14mm | 14.2875mm (9/16") |
15mm | 15.875mm (5/8") |
20mm | 22.225mm (7/8") |
Application of tungsten carbide ball
1. Vavle, precious bearing, grinding, Golf counterweight,
2. Fishing pendant, mobile phone vibration
